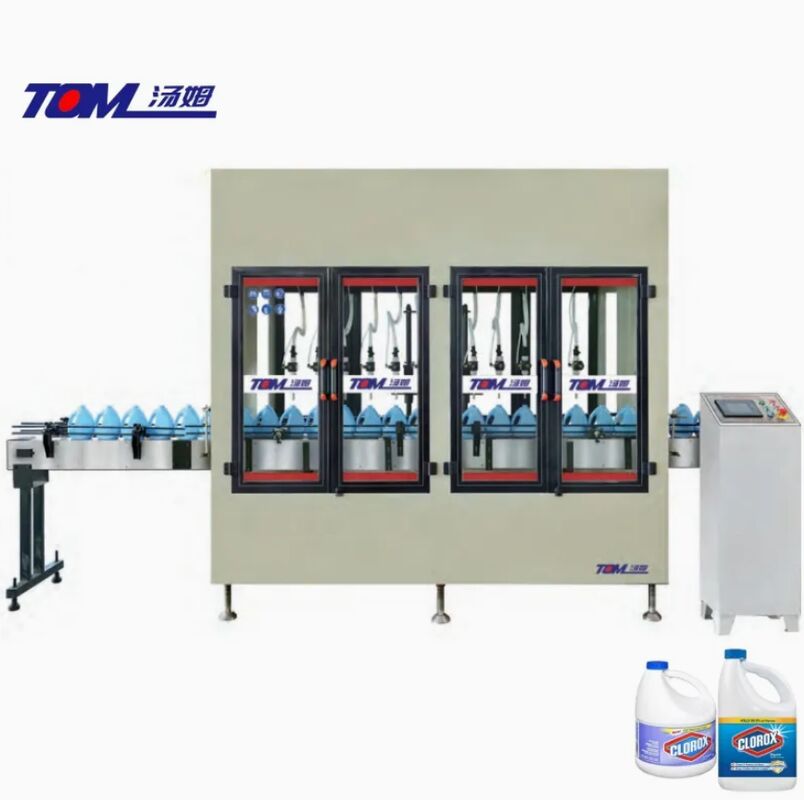

Versatile Non-Metal Toilet Cleaner Filling Machine for 500ml-3000ml

Product Description

This line is suitable for filling toilet cleaner products with specifications of 500ml-3000ml

Main features:
1. This line is suitable for filling toilet cleaner 500ml-3000ml specification products:
2. One click adjustment of the entire line (quick switching of specifications), reducing labor intensity and labor costs;
3. The filling speed of the entire line is 6000 barrels per hour, which can be customized according to needs;
4. Filling accuracy 3L bottle ± 5g, accurate precision, reducing unnecessary waste;
5. Linear piston tracking filling, tracking screw cap;
6. Flexible filling, easy adjustment, suitable for switching back and forth between multiple specifications;
7. The entire line is made of stainless steel material, with a beautiful and elegant appearance.

Product Parameters

Automatic bucket feeding machine, tracking filling and capping integrated machine, Crooked cap inspection and removal device, online bottle weight inspection and removal device, aluminum foil sealing machine, inkjet printer, aluminum foil leak detection machine, stacking machine, robot palletizer. Intelligent labeling machine, servo clamping steering machine, box erector, automatic bottom plate machine, packing machine, online box inspection and weight removal machine, sealing machine,pallet dispenser, robot palletizer.

​

Main Parameters:
Power supply:	AC380V.50/60HZ
Single line power approximately:	55KW
Gas source pressure:	(0.6-0.7) MPa Dry, clean and stable gas source
Single line gas consumption approximately:	1.1m ³/min

Application



Applicable bottle type:

Length 80-240mm
Width 80-180mm
Height 200-320mm

Main Configuration

Anti-corrosion Intelligent Filling Machine

12-24 Filling Valves Capacity: 2500-6000 BPH Accuracy: 0.5%

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
FXX-4/6/8A Anti-Corrosion Rotary Intelligent Capping Machine ----4/6/8 Capping Heads

Suit for corrosive liquid(low or high ph value)	Capacity: 4 heads - 3000-4500 BPH
Quick switch design, in 5 mins without tools	Capacity: 6 heads - 4000-6000 BPH

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

TBJ-920A Intelligent Double sided Adhesive Labeling Machine

Applicable bottle type:	Length 80-240mm, Width 80-180mm, Height 200-320mm
Applicable labels:	Height 20-160mm,20-150m in length
Capacity:	5L ≤ 2400 barrels/hour
Labeling accuracy:	±1mm

ZZP-2NA Intelligent Case Packer

Collaborative palletizing robot
Maximum load: 20Kg
Capacity: 4-8 boxes/minute
Working radius: 1600mm
Vertical distance: 2100mM

Customer Service

AFTER-SALES AND SERVICE

All-round assisting service, lifetime maintenance for our equipment.
Big date service center to remote solve customer equipment problem.
The professional after-sales team of 100 people, after-sales are all loyal employees who have worked in the company for more than 5 years.
Ample spare parts supply, our basic spare parts are processed and produced by ourselves to ensure the timeless and stability of the spare parts.
TOM will care for every machine out of our factory, just like our own child working outside.

Company Profile

Jiangsu Tom Group is a full-service provider specializing in the research and development, design, and production of intelligent filling equipment. Since entering the intelligent filling industry in 1998, we have been dedicated to providing customers with exquisite engineering design, generations of advanced intelligent filling lines, warehousing and logistics software engineering, EPCM projects, and smart factories.

What we can do ?
· Agrochemicals packaging machines
· Household & personal care packaging machines
· Edible oil ,sauces & condiment packaging machines
· Petrochemcials packaging machine
· Coating ,paint packaging machines
· Intelligent packaging of chemical new materials
·Pesticide Formulations Engineering (EPC/EPCM )

As of now, Tom has served more than 4000 domestic customers and over 600 foreign customers. Its excellent performance and comprehensive after-sales service system have received unanimous praise from a large number of users. CNPC, Sinopec, CNOOC, Luxi Chemical, China Resources Group, Shanxi Coking Coal Group, CNOOC Grain and Oil, Wanhua Chemical, Tianci, Wengfu, Roche, Jingbo, Kingenta, Stanley, Shanghai Dalian, Jiangsu Longpan, Jiangsu Gaoke, Idemitsu, Castro, Syngenta, Bayer, BASF, Red Sun, Wynca Chemical, Rainbow Chemical, Yinghui, Noposin, Lier, Meibang, Jiangshan Chemical, Libai, Blue Moon, Unilever, Zhuangchen, Qiqiang, Cnnice, Longrich, Reckitt, Liangmianzhen, Likang Medical, Swiss Sika, Oriental Yuhong, 3 trees, Hempel, Jordan Coatings. Nippon Paint, PPG, Asia-paint, Keshun, Nestle, Lee Kum Kee, Yaomazi, Yihai Kerry, Longda, Luhua and other famous domestic and foreign enterprises have become strategic partners of Tom.
